Yamaha Cross Core RC
Power Assist Electric Casual Pavement Adventure Bike
Powerful support and natural, organic assist feel
Made for roads and city. Point A to point B just got a whole lot sweeter. Experience the wind in your face, air in your lungs, and what life on two wheels has to offer. Enhance your everyday adventure with the new CrossCore RC. Charge. Pedal. GO!
SALE PRICED WHILE THEY LAST.
With pedal assist power up to 28mph, Yamaha's Quad Sensor System delivers assist in all conditions and offers a broad range of power assist modes that work great for many different styles of riding.

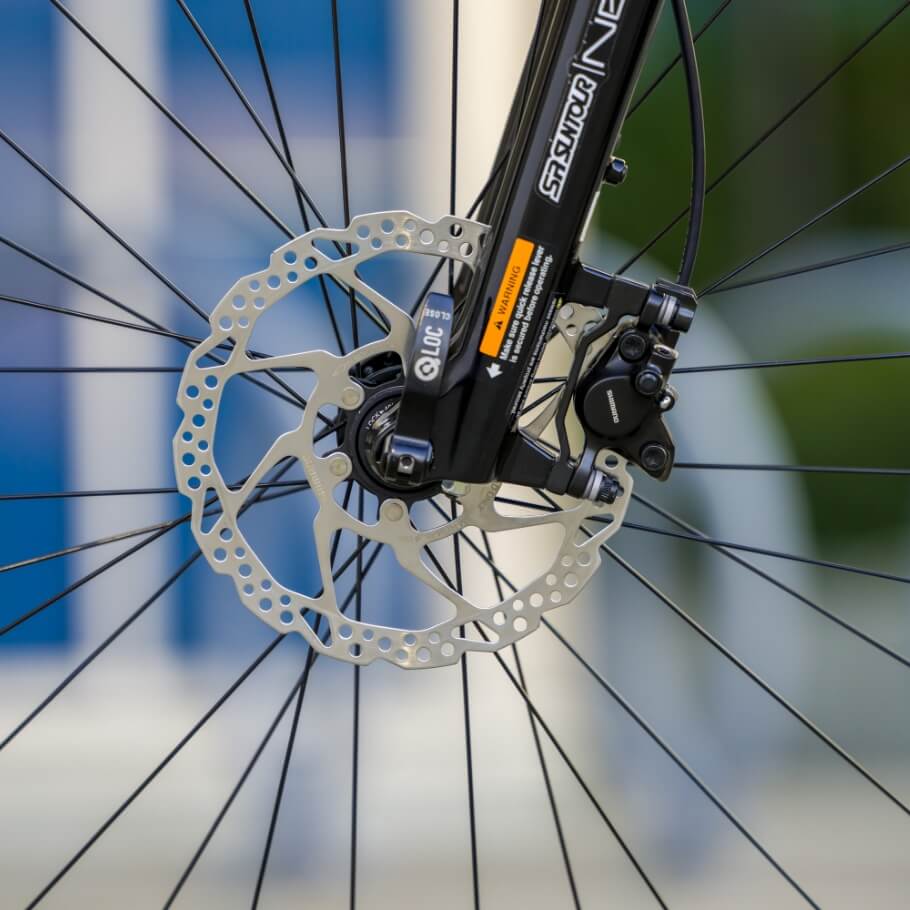

Hydraulic Disc Brakes
Hydraulic disc brakes and center lock rotors provide you with strong, dependable braking power in all conditions. Power when you want it, braking when you need it.
Large Volume Road and City Tires
Large volume 2” wide tires means smoother pedaling over rough surfaces for a more comfortable ride feel. Now you can comfortably stay out longer or go even further.
Easy Accessory Compatibility
Equipped with an integrated kickstand for easy stowage and tabs built into the frame for options like fenders and rear rack. Take your things with you and make it a fun trip.
Yamaha 500Wh Battery
Yamaha’s proven 500 Watt-hour Lithium-ion battery encased inside the frame provides you with great function, reliability, and protection. When it’s time to plug-in the high-speed charger, you can choose to recharge with the battery pack in the frame or take it out for convenient storage.
Integrated Speed Sensor
Engineered into the rear hub and an exclusive design to Yamaha bicycles, our speed sensor immediately recognizes the slightest change in rolling speed and adjusts motor input to deliver a smooth and natural power assist feel.
Equipped with a powerful LED headlight to help guide the way and easy on/off button access using the ergonomic multifunction display switch.
Bring the smooth and easy-to-adjust comfort of the SR SuntourNEX fork. Take the thud out of small bumps and rough roads with 2.5” of cushioned without losing the quick handling characteristics of the optimized frame geometry.
ALL-NEW Modes, Display, and Switch
Utilizing our Quad Sensor System, the NEW Automatic Mode brings an added peace of mind to our existing 4-mode system for smooth and powerful assist. Our new display is designed for a wide range of uses, from city to trail riding and features a simple and easy to operate LCD display with speed and battery capacity functions.
SUGGESTED USE: Casual Pavement Adventure
COLORS: Painted Desert, Shiver White & Urban Sage
SIZE: 54cm (S), 57cm (M), 60cm (L)
TOTAL WEIGHT: 52.2 (S), 52.4 (M), 52.6 (L)
- PWSeries ST
- 3-bolt Mount
- Square taper spindle
- Quad Sensor System with rear hub speed sensor
- Weight: 7.71lb
- Rated power: 250W (Nominal), 500W (Max)
- Max torque: 70Nm
- Max cadence support: 110rpm
- Max speed support: 28mph
- Support modes: AUTO, ECO+, ECO, STANDARD, HIGH
CONTROL SWITCH AND MULTI-FUNCTION COMPUTER
Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, Bluetooth™ connectivity, USB power, USB connectivity, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator
Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%)
- Yamaha Lithium Ion with charge-life indicator and self-diagnosis display
- Side-exiting dock station with anti-vibration mounting plate
- Weight 6.61lb
- 500Wh 36V
- 4-hour charge time
- FRAME: Yamaha Hydroformed Aluminum
- Integrated battery
- Water bottle boss
- Tapered Headtube
- Internal shift/brake hose routing
- Rack/Fender compatible
- SR Suntour NEX E25. 63mm Travel
- 2x100mm Thru-Axle
- Integrated headset with 30mm headset spacers
- Yamaha Alloy 4-bolt faceplate
- 31.8 diameter
- 80mm length (53cm, 55cm)
- 100mm length (58cm)
- Alloy flat bar zero degree rise
- 31.8mm diameter
- 640mm width
GRIPS/TAPE: Two-tone ergonomic locking
SEATPOST/SADDLE CLAMP: Alloy 30.9 x 295mm (S), 345mm (M L) with 2-bolt adjustable tilt saddle rail clamp
SEATPOST COLLAR: Alloy 2-bolt 35.0mm
SADDLE: Yamaha Urban Comfort Cro-Mo Rail
SHIFTERS: Shimano M2010 9-speed
Gear selection window
FRONT DERAILLEUR: Shimano Sora (2 x 9) Braze-on
REAR DERAILLEUR: Shimano M3100 SGS
CRANKARM: Square taper 165mm (S) 170mm (M L)
CHAIN: KMC e11 118 links
CASSETTE: SHIMANO HG400 9-speed 11-13-15-17-20-23-26-30-36T
CHAINRING(S): SAMOX 44t
BRAKES/ROTORS: Shimano MT200 front/rear Shimano SM RT21, 180mm front, 160mm rear
RIMS: 275” 32-Hole Dual Channel Welded Pin w/ Eyeleted Spoke
SPOKES: SUS304 14G
SPOKE NIPPLES: Brass
HUBS: Front: 12x100mm Quick-Release Thru-Axle (QRTA)
Rear: 12x142mm QRTA with integrated speed sensor
TIRES/TUBES: CST C1996 27.5x2.0”
- Yamaha battery charger
- LED Headlight
WARRANTY: 3-Year on Frame, Drive Unit, Battery
Specifications are subject to change without notice
